Sherborn

Project Overview

Historic Estate. Digital Precision.

Set on over nine acres overlooking Farm Pond in Sherborn, Massachusetts, this remarkable 16-room antique home, circa 1763, embodies New England craftsmanship at its finest.
The property includes a six-room caretaker’s residence, a four-car garage, a four-stall barn with tack and storage areas, multiple paddocks, a workshop, kennel, boat house, and private beach — all documented in full 3D detail by Pointknown.

Our role was to capture, measure, and model every structure across the estate — from the main house and barns to the outbuildings and waterfront — creating an exact digital twin to support restoration, renovation, and long-term planning.

Scope of Work

Deliverables

Complete as-built Revit model of all buildings on site

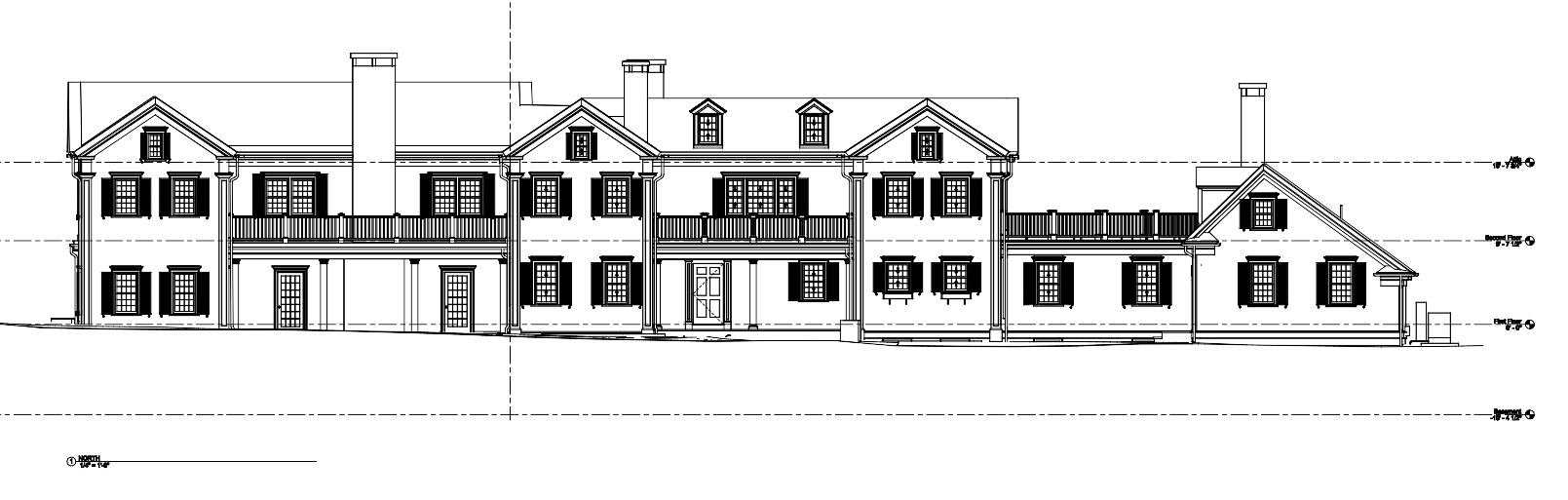

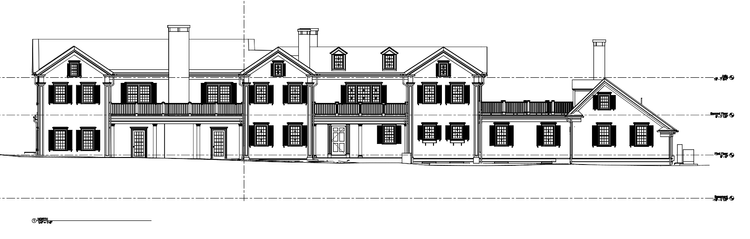

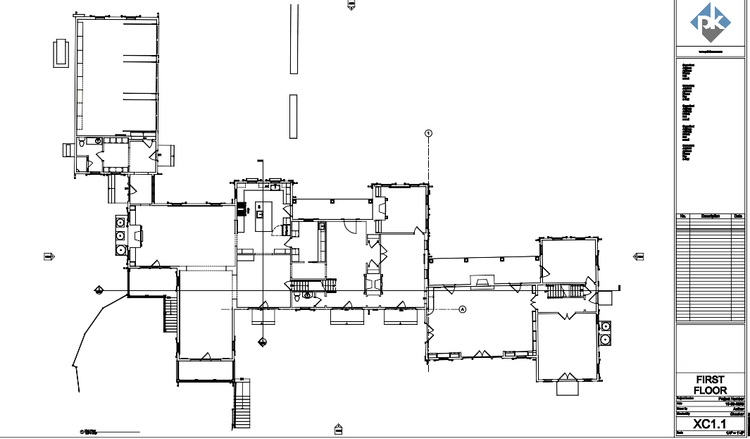

2D AutoCAD plans, sections, and elevations

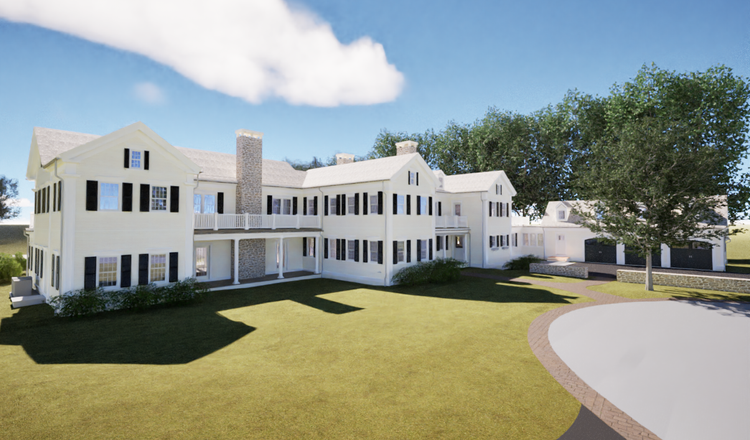

3D SketchUp model for concept visualization and design development

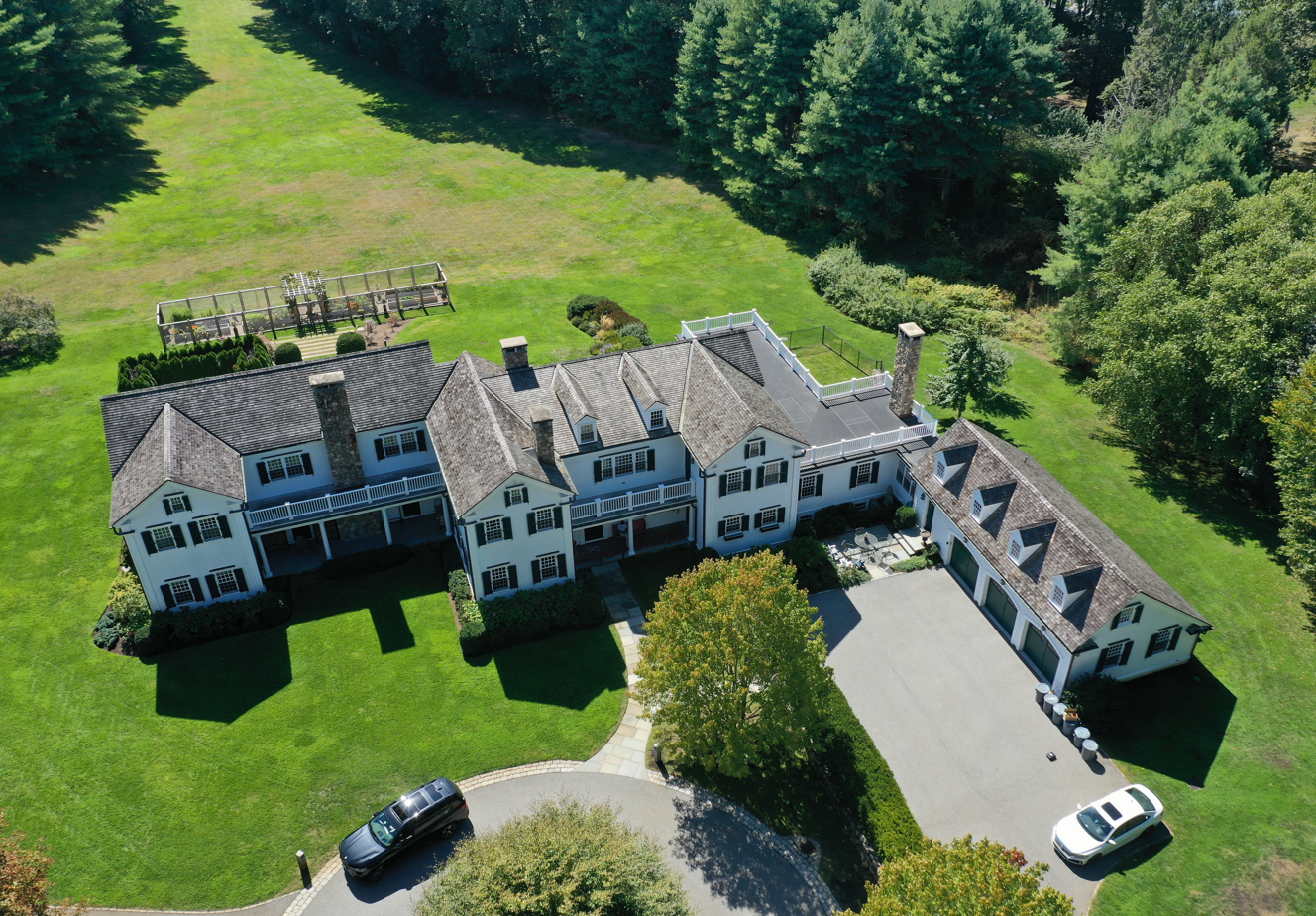

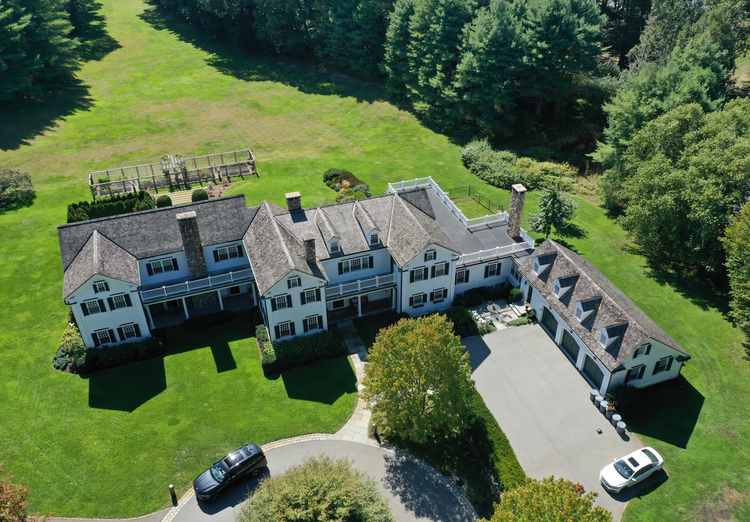

High-resolution drone imagery and orthophotos for roof geometry and site grading

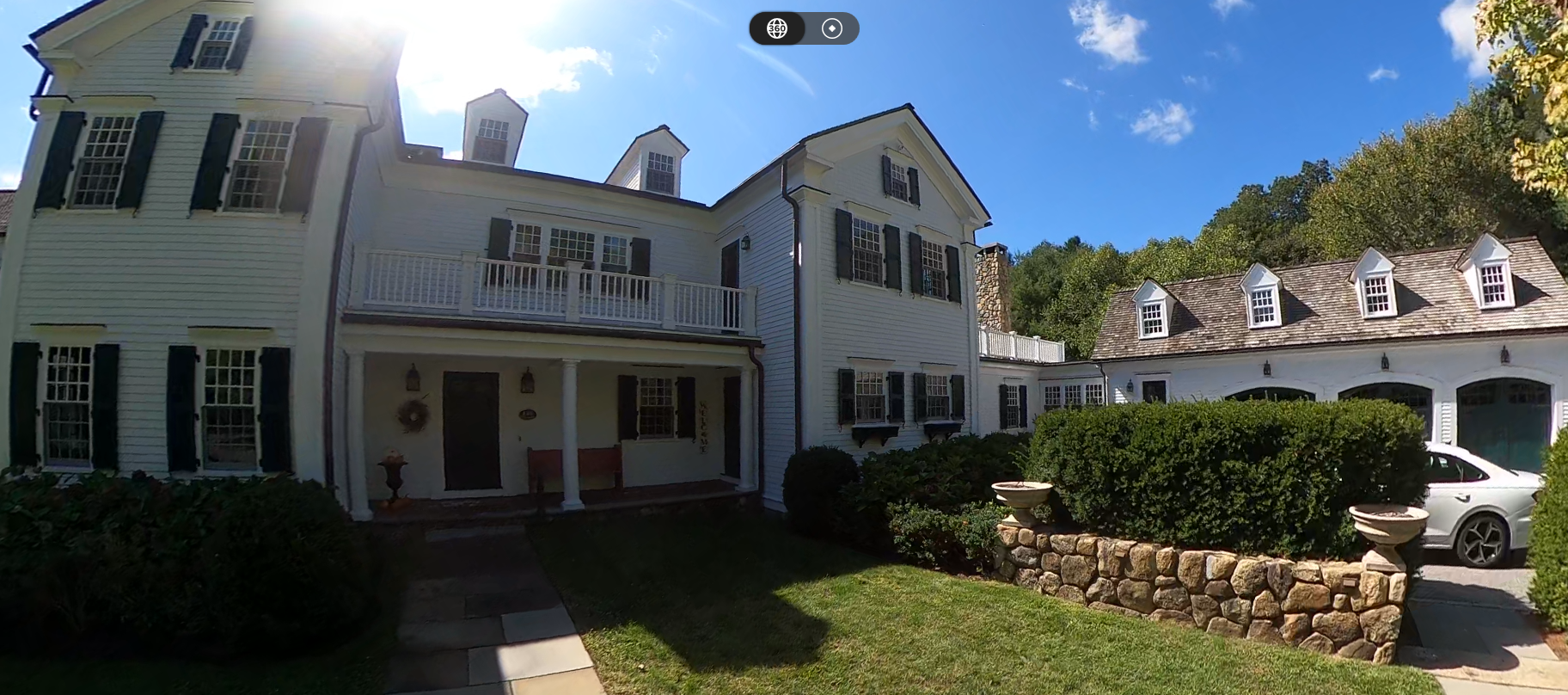

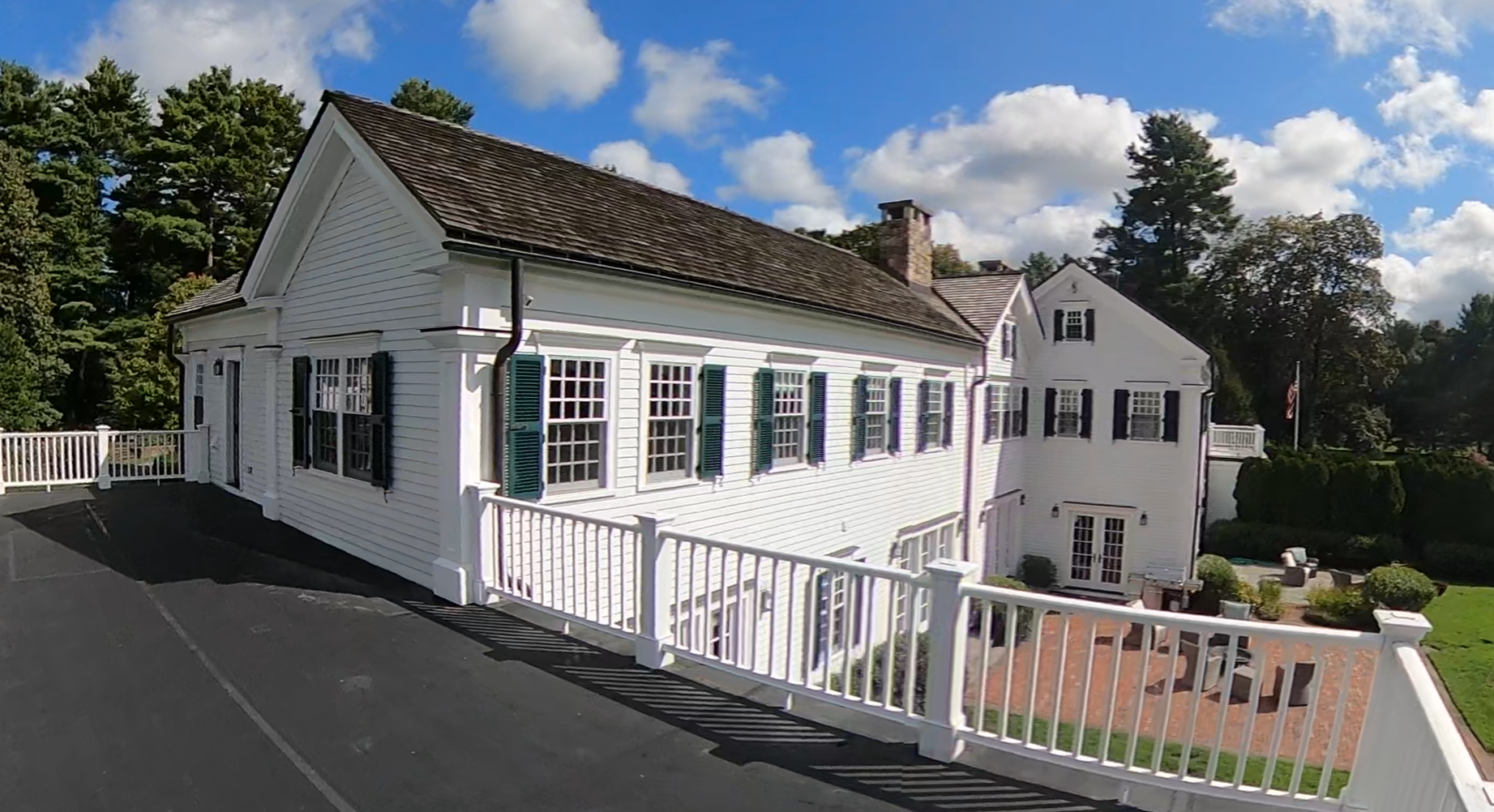

360° video coverage of interiors and exteriors for team reference

Data Collected

Over 400 terrestrial and mobile LiDAR scan positions

Drone mapping with ground-control verification for site alignment

Registered point cloud exceeding one billion data points

Project Highlights

Historic Fabric, Digitally Preserved — The 1763 main house and outbuildings were scanned inside and out, capturing original post-and-beam construction, fieldstone foundations, and complex roof geometry.

Comprehensive Site Capture — From paddocks and pathways to the boathouse and shoreline, every element was geospatially aligned to provide designers a complete understanding of the estate.

Design-Ready Accuracy — Architects can now base design, restoration, or planning decisions on verified conditions, saving time and reducing rework.

Contextual Visualization — Drone imagery and 360° coverage give owners, planners, and consultants a true sense of scale and setting.

Technology + Process

Reality Capture Methods:

FARO Terrestrial LiDAR for high-precision interior/exterior scans

GeoSLAM Mobile LiDAR for barns, garages, and circulation spaces

Drone Photogrammetry to capture the site and roof structures

360° Camera Documentation for visual context

Processing Pipeline:

Alignment and cleanup in Autodesk ReCap Pro / CloudCompare

Modeling in Autodesk Revit

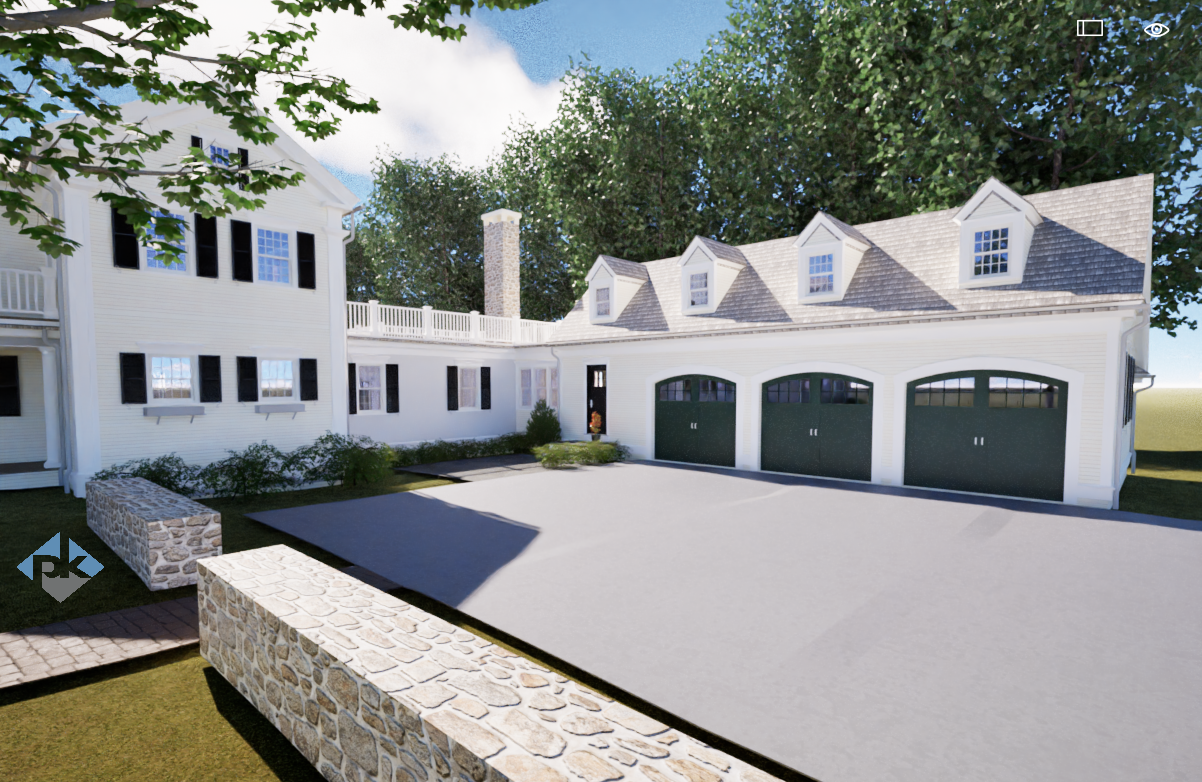

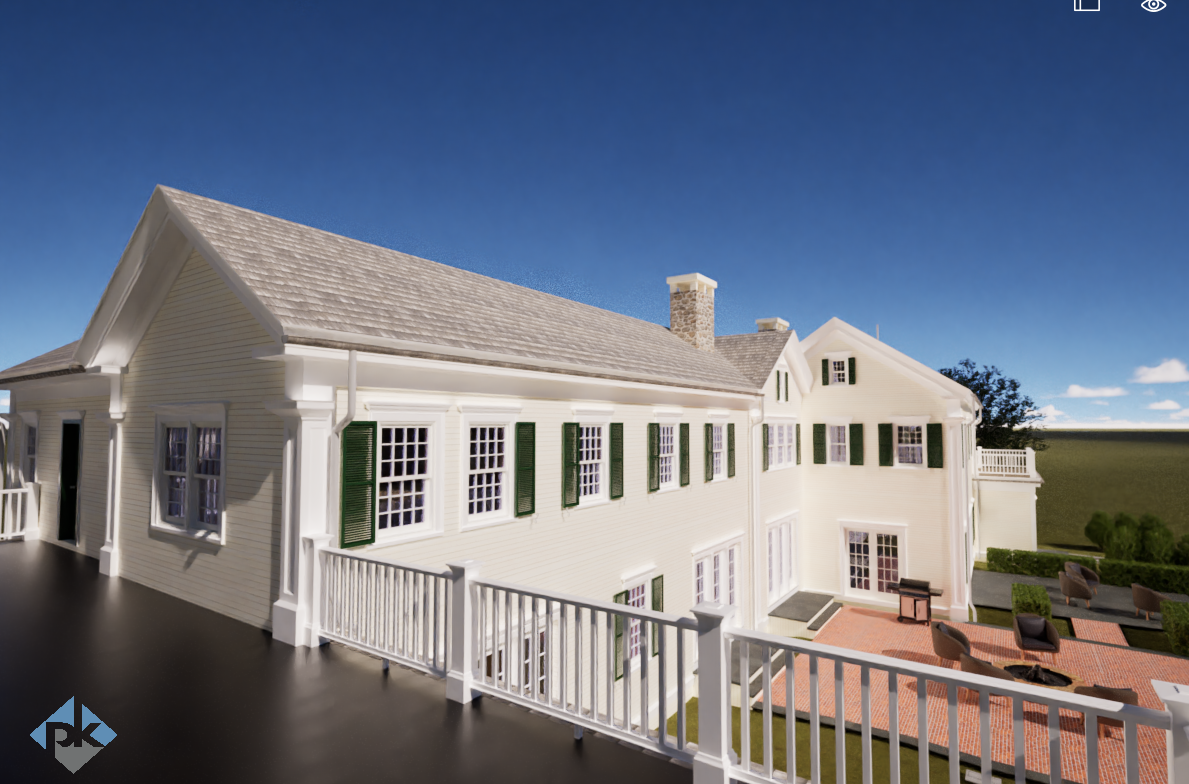

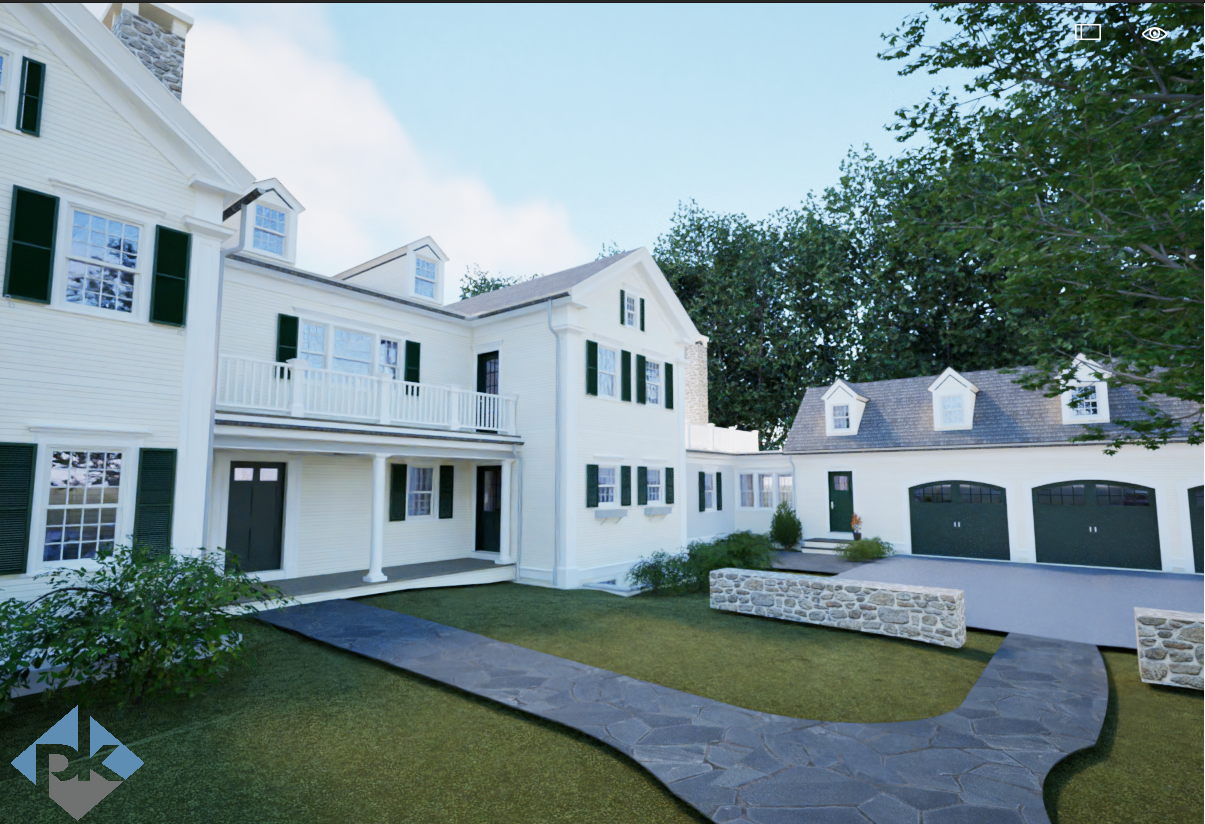

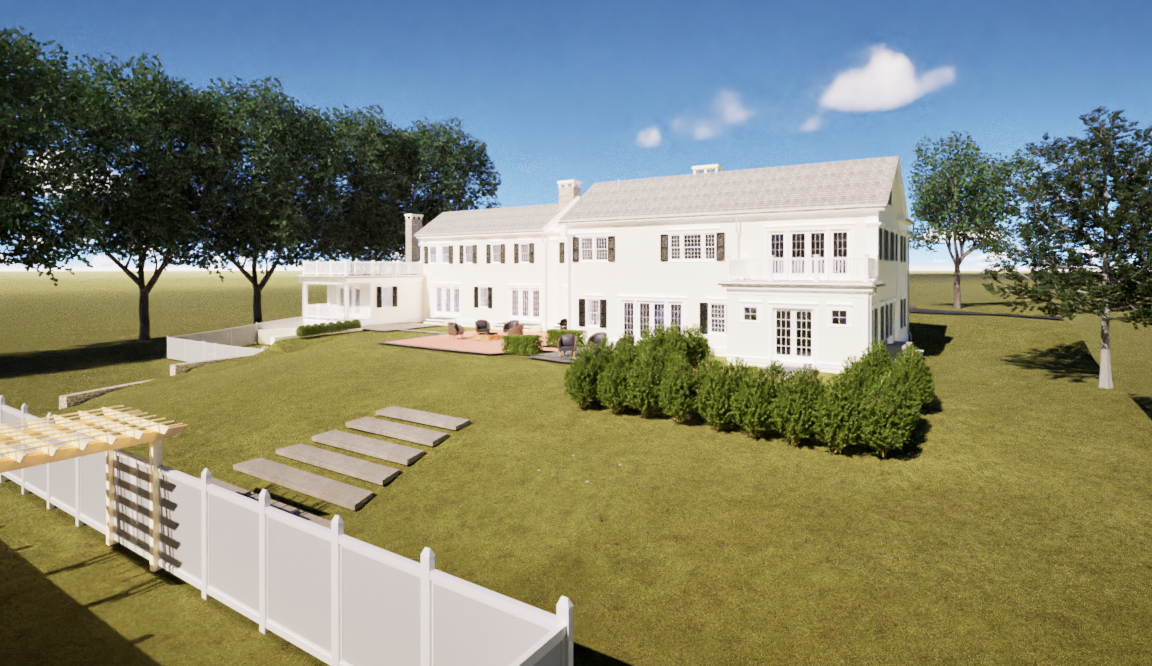

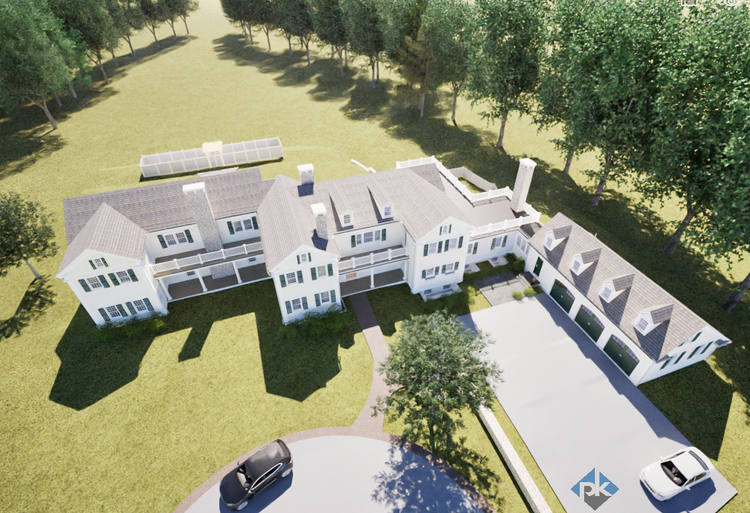

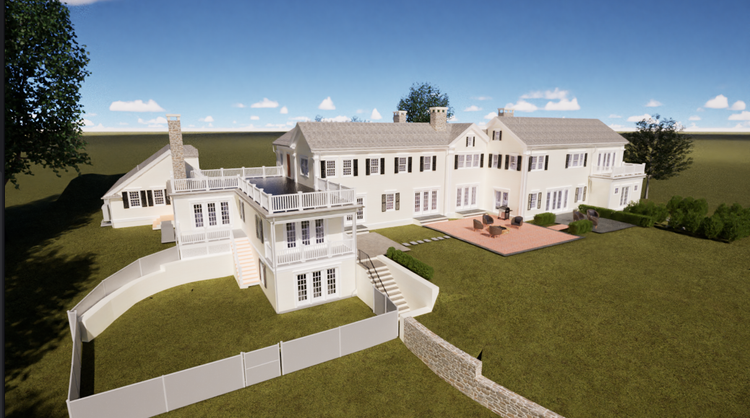

Visualization outputs via TwinMotion

The Result

A fully documented, measurable, and visual digital record of a unique country estate — combining 18th-century architecture with 21st-century technology.

With every beam, barn, and shoreline element captured, the design team can now restore, adapt, and maintain this property with confidence and clarity.
