Thanks for scanning. Here’s what’s happening in Winchester.

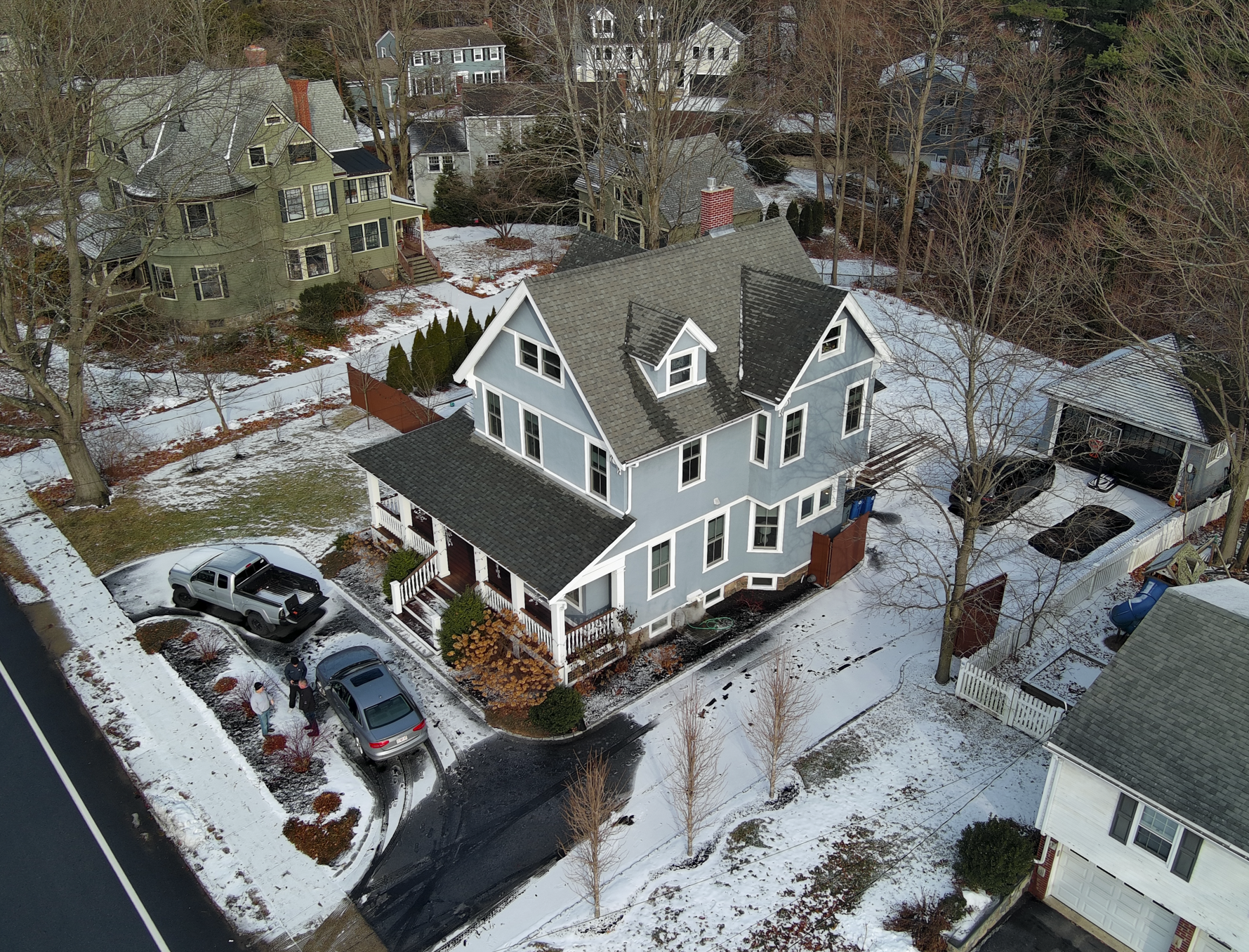

You’re viewing a live residential renovation project documented in 3D by Pointknown.

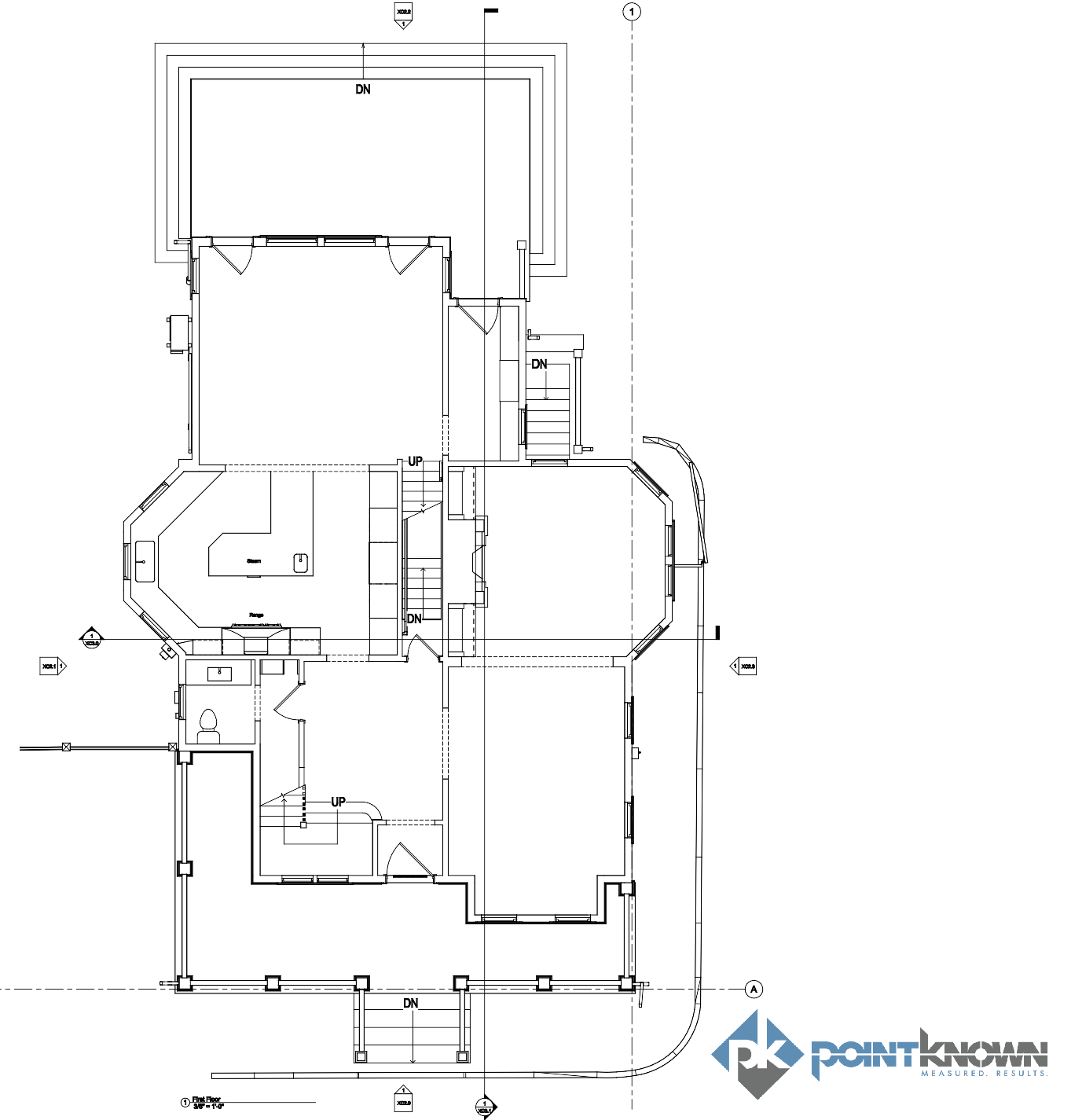

For this Winchester home, Pointknown captured the existing building and converted that information into a design-ready Revit model, CAD plans, elevations, sections, and visual project views.
Before the renovation moves forward, the team needs to understand the home as it exists today — accurately, clearly, and in 3D.
Project snapshot
Digital existing conditions for a renovation and addition.
The owner and design team needed dependable geometry before moving into design decisions, roof tie-ins, garage planning, and visualization.
What’s happening here
Reliable geometry before renovation decisions get expensive.
This Winchester home is undergoing a major renovation supported by accurate existing-conditions documentation from Pointknown.
For this project, we created a full 3D digital model of the home so the owner and design team could evaluate renovation options before construction began. The work included documenting the existing house, supporting the conversion of a rear garage into home office space, and helping coordinate a new attached garage with covered access into the home.
Because additions need to connect cleanly to the existing structure, accurate documentation of roof lines, elevations, and geometry was critical from the start.
Design-ready baseline
Not just measurements. A model the design team can use.
Pointknown documents homes and buildings as they exist today so architects, owners, and project teams can begin with accurate information.
That can mean a Revit model, CAD plans, 3D viewer access, or visual support that helps everyone understand the project before work begins.
Why it matters
Less guesswork. Better coordination. Fewer surprises.
Renovations are full of unknowns. Pointknown helps reduce those unknowns before they become field problems.
Reduce guesswork
Start design with reliable measurements and documented existing conditions instead of assumptions.
Coordinate with confidence
Tie new work into the existing home more clearly, especially where roofs, additions, and transitions get complex.
Make decisions earlier
Walk through the home digitally, review options sooner, and move into design with fewer surprises.
What Pointknown delivered
The digital foundation for planning and design coordination.
For this Winchester renovation, Pointknown provided the measured information and visual context needed to support planning, visualization, and design coordination.
Sections and elevations
Understanding the home in section, not just in plan.

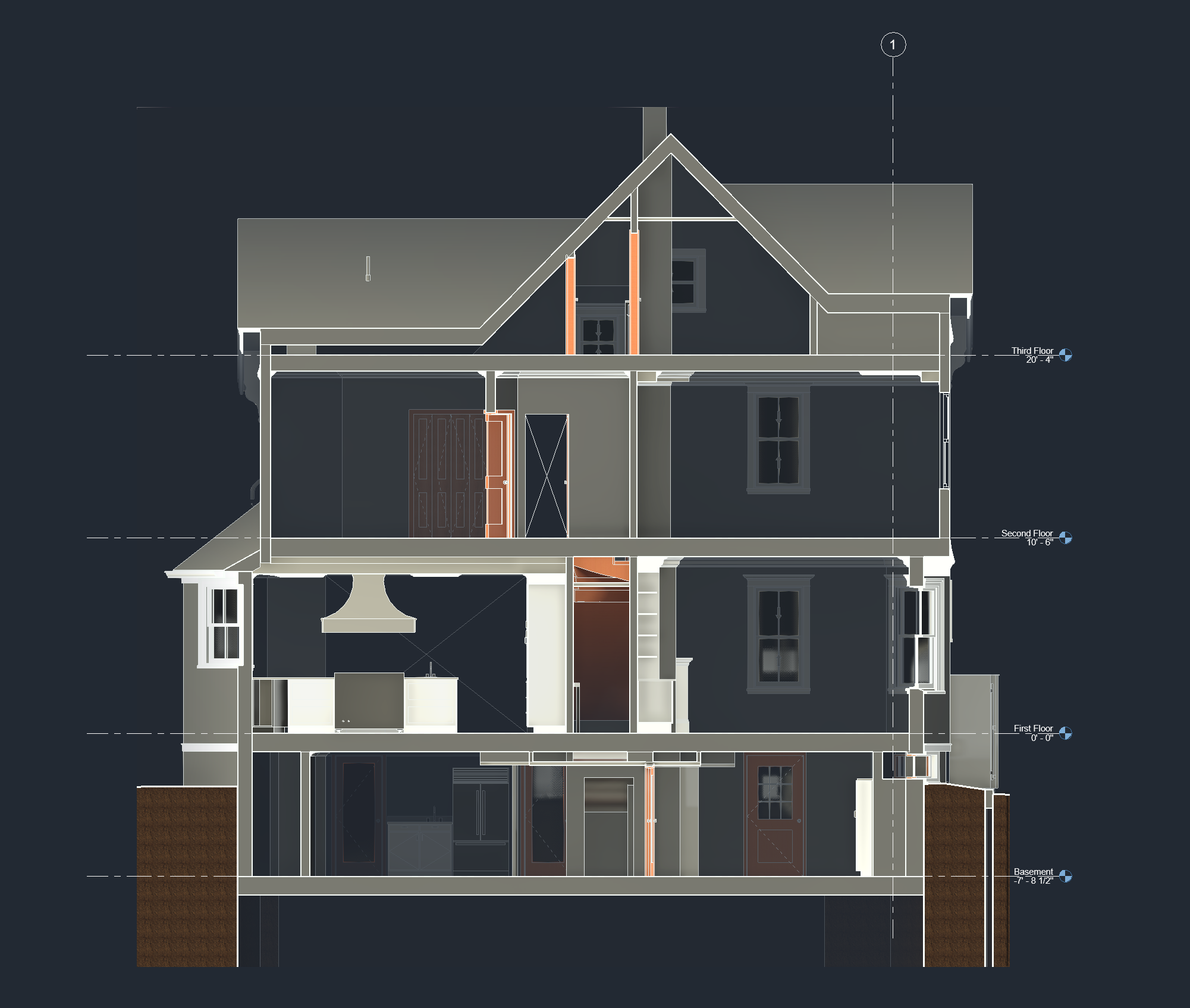

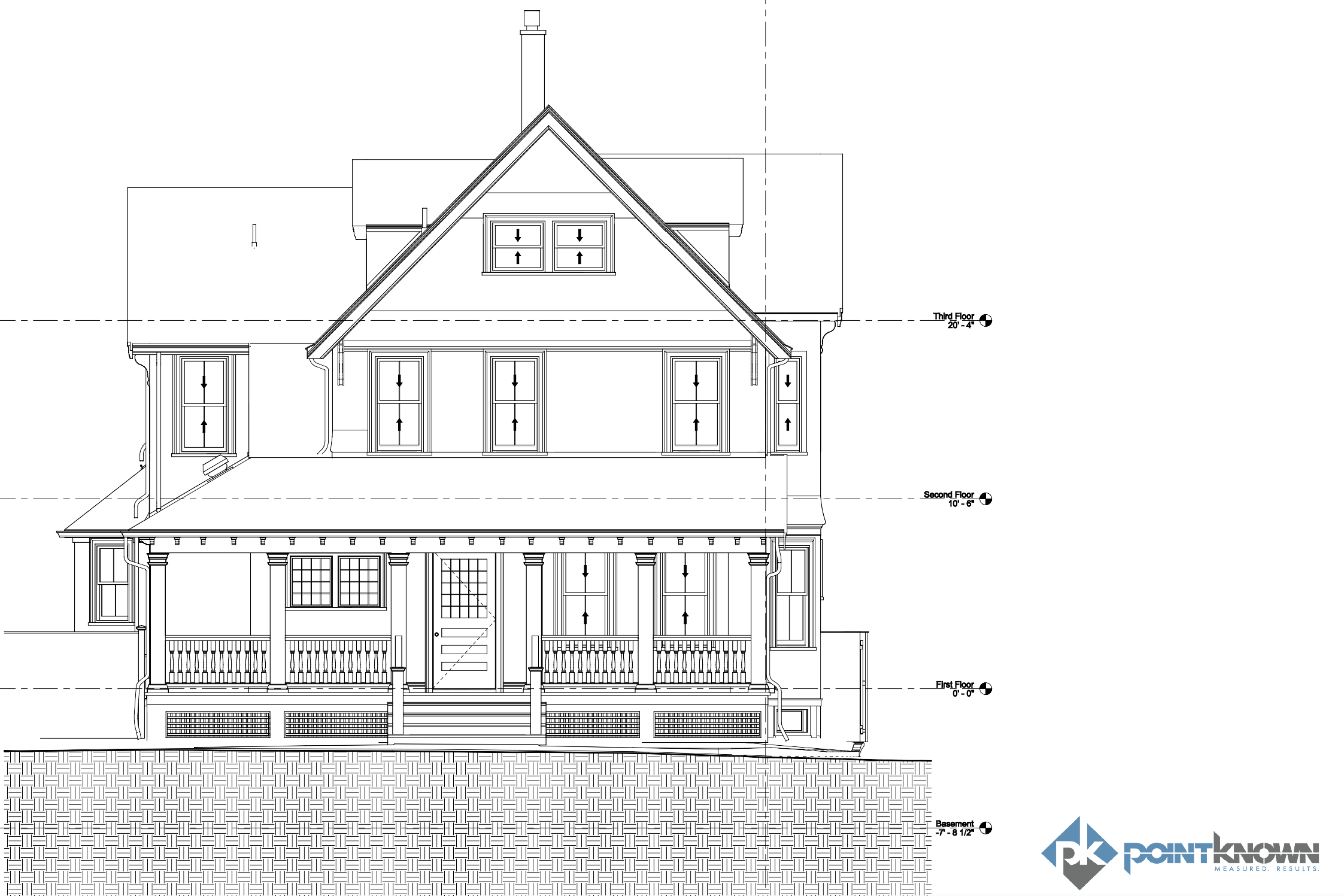

Renovations often hinge on vertical relationships: floor levels, roof planes, ceiling heights, stairs, structure, and exterior grades. Sections and elevations help the design team see those relationships clearly.
Project visuals
From field capture to model views and drawings.
These views show the kind of visual and technical information Pointknown can produce from an existing-conditions documentation workflow.
How we help
A cleaner path from existing house to renovation plan.
Pointknown turns existing buildings into useful digital information for homeowners, architects, and project teams.
Capture
We document the home using reality capture methods suited to the site, scope, and design needs.
Process
Scan, image, and field information is organized into a usable digital reference.
Model
We create design-ready Revit and CAD deliverables that support architectural work downstream.
Review
The team can review drawings, model views, elevations, and visual context before design moves forward.
Planning a renovation or addition?
Start with a clear understanding of what exists.
If you’re considering a residential project and want accurate existing conditions before design begins, Pointknown can help.
Pointknown documents existing conditions for homeowners, architects, and design teams across Massachusetts, New England, and select national projects.
