Hilton Chicago was documented across guest rooms, corridors, and key back-of-house and service areas within an actively operating historic hotel. The scope extended to visible building systems within each space, including electrical devices, communications infrastructure, outlets, switches, and fire protection elements, ensuring both architectural and operational conditions were captured at room scale and across circulation networks.
Capturing every detail of a landmark hotel before design begins
Pointknown provided comprehensive existing conditions documentation for the Hilton Chicago, combining high-accuracy 3D laser scanning with detailed Revit modeling to create a dependable digital representation of the property. Working within an active hospitality environment required careful coordination to document interior spaces efficiently while minimizing disruption to daily hotel operations.
The resulting documentation gives architects, engineers, and project stakeholders a reliable foundation for renovation and planning. With accurate measurements, coordinated building information, and an intelligent Revit model, the project team can make design decisions with confidence, reduce field verification, and streamline every phase of the renovation process.
Working around a live hotel environment.
Fieldwork was scheduled during the winter slow season, allowing selected floors to be temporarily taken offline while maintaining overall hotel operations.
From field capture to coordinated project deliverables
Documenting a large, active hotel requires more than accurate measurements. Pointknown followed a structured workflow that transformed reality capture into coordinated digital deliverables, giving the design team a reliable foundation for renovation planning and future project development.
Capture
High-accuracy 3D laser scanning was performed throughout the Hilton Chicago to capture existing conditions while coordinating around active hotel operations. Every scan preserved the geometry needed for accurate documentation without disrupting daily activity.
Model
Scan data was processed into an intelligent Revit model that accurately represented the existing building. Architectural elements were translated into coordinated digital assets that architects and engineers could immediately use for design and planning.
Deliver
The completed package included organized Revit files, existing conditions documentation, and coordinated project data, providing the design team with dependable information to reduce field verification and accelerate renovation workflows.
Existing conditions documented with precision for a landmark hotel
Through high-accuracy 3D laser scanning and Revit modeling, Pointknown delivered a coordinated digital representation of Hilton Chicago, providing architects and engineers with dependable existing conditions documentation for renovation planning and project coordination.
A reliable digital representation of the building
A coordinated Revit model provides architects and engineers with an accurate foundation for renovation planning, reducing the need for repeated site measurements and improving project coordination.
Accurate spaces ready for design

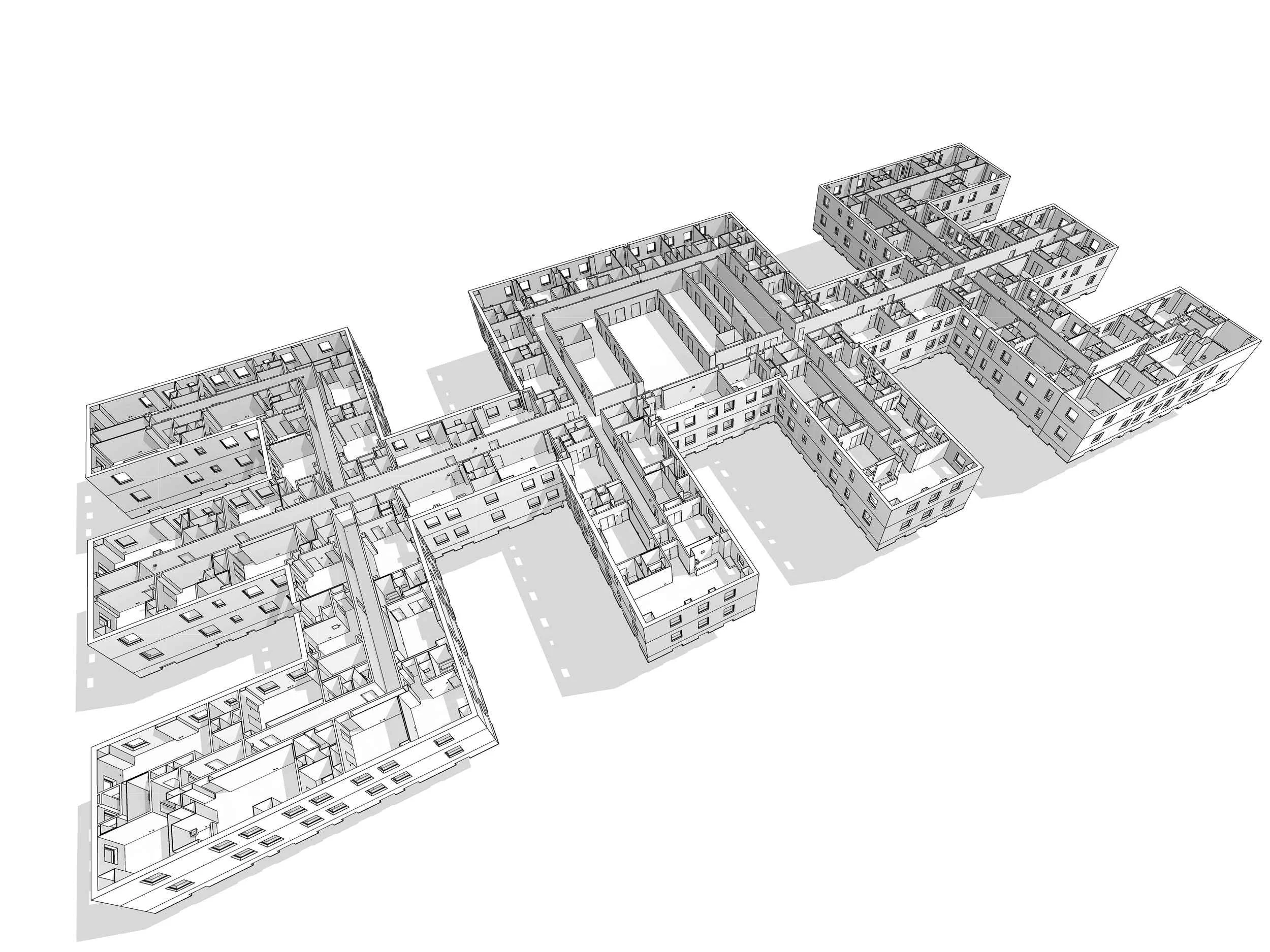

Existing architectural layouts were translated into an intelligent BIM model, giving the project team dependable information for renovation, coordination, and future design decisions.
Built for renovation and long-term project coordination
The completed model serves as a dependable reference throughout the renovation process, helping project teams visualize existing conditions, coordinate disciplines, and make informed decisions with confidence.
Scale changes everything
Originally opened as the Stevens Hotel in 1927, Hilton Chicago once held the title of the largest hotel in the world. That scale introduces complexity in both architecture and operations, making accurate existing conditions essential for any future intervention.
Before modern capture tools, projects like this relied on disciplined field coordination and careful planning to ensure reliable outputs across thousands of rooms and systems.
