LOCATION: Andover, MA
3D Model : Here
SCOPE: 3D Capture & Document Existing Shell and 1st Floor Layouts in Revit
PROCESS: Create flight plan for existing building and surrounding are for Drone and Hi-res Photo capture. Process and register photos to created integrate 3D mesh and export .las (point cloud) file. Create SLAM cloud of entire interior. Register clouds to each other to create unified multi source cloud of entire building.

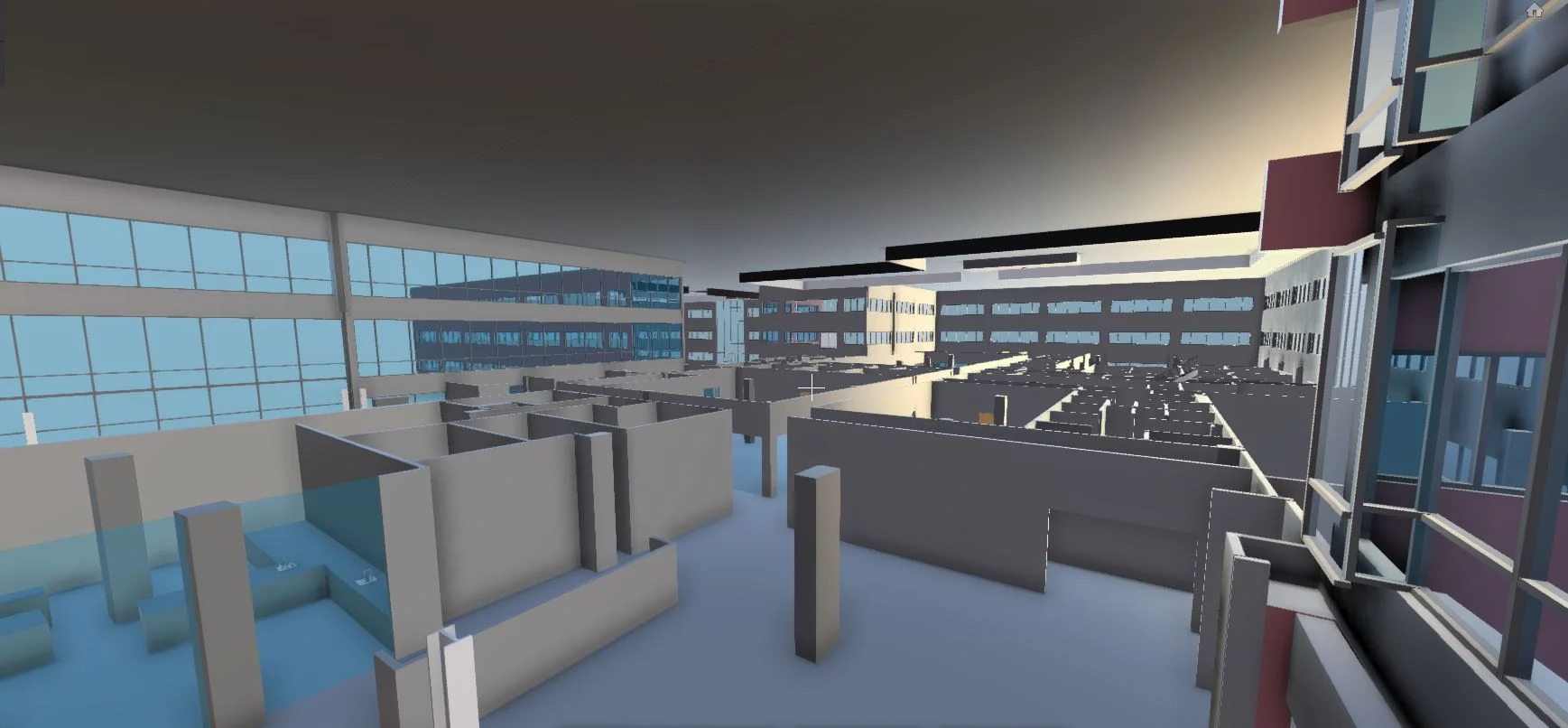

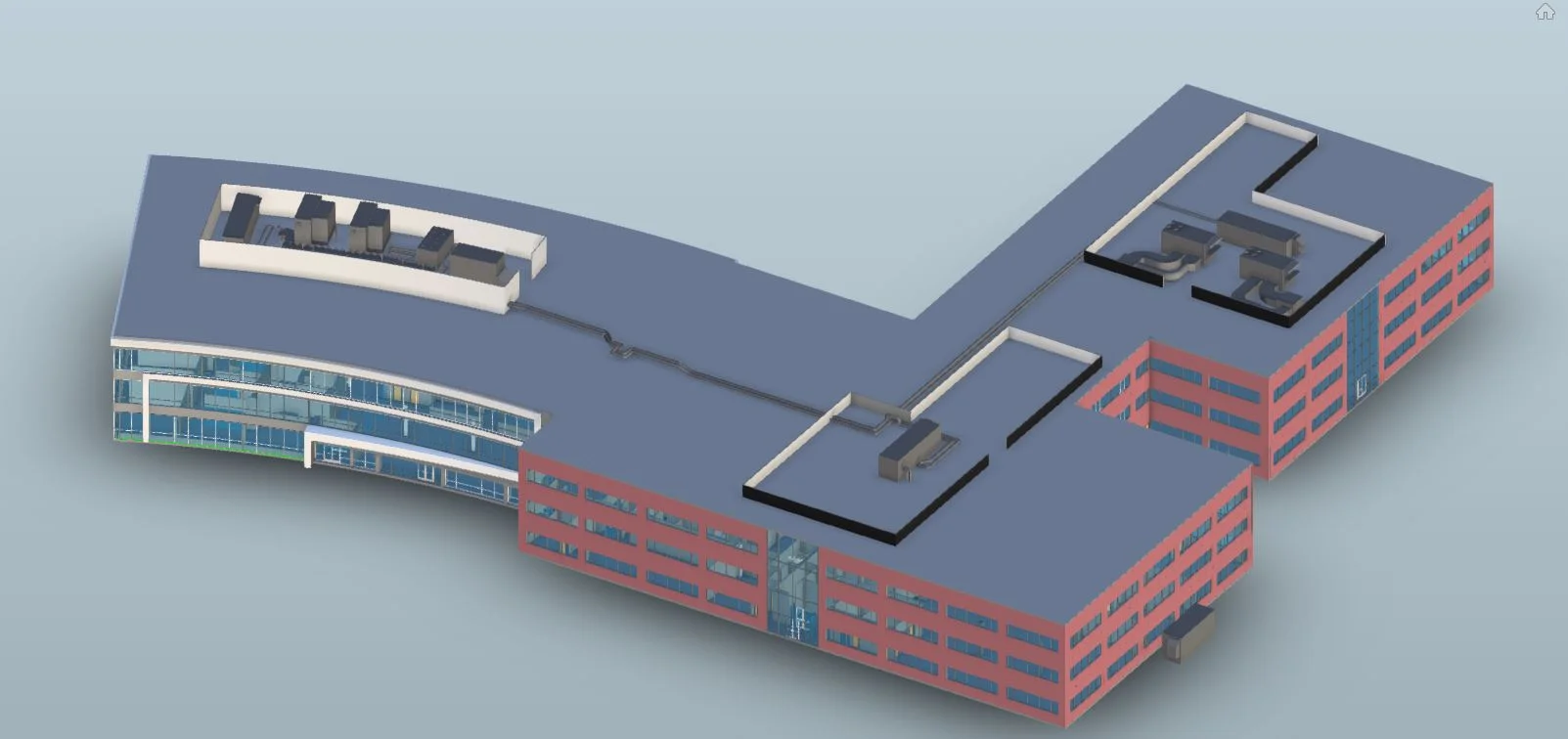

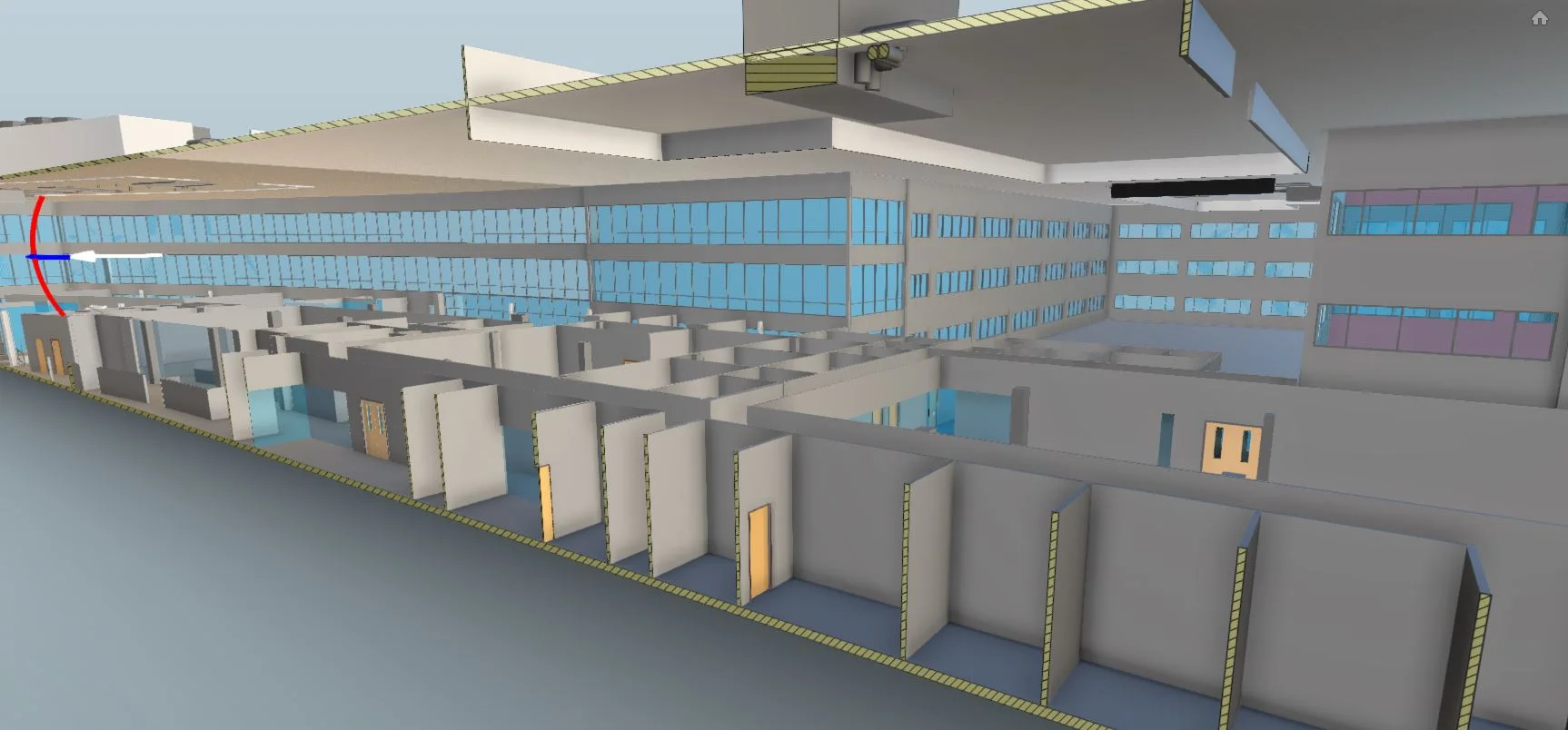

Utilize data to model building Revit
TECHNOLOGY: Pix4D, Phantom Drone, Context Capture, SLAM, Tripod Mounted and Handheld Laser Range Finders. ReCap, Revit, GeoSLAM, Cloud Compare
